Modular architecture for every use case

Thanks to their modular architecture, ELO-BAR induction heating machines for bar forging offer a suitable and economical solution for every use case. The induction section can be adapted as required to every desired throughput. Standard interfaces between individual SMS Elotherm GmbH components, and especially to downstream forming units, enable flexible – and above all – long-term economical conversion and upgrading of bar heating at any time.

Optimal tailored to the customer

One of the special advantages of induction heating machines for forge heating is simple adaptation using additional system components. This allows them to be adapted to the specific requirements of plant operators at reasonable cost as well as to be easily retrofitted or converted at a later date. These options include bar magazines, hot soaking, and hot shear systems.

All machine components are designed and built by SMS Elotherm GmbH for easy access and maintenance.

This applies in particular to the substructure, as well as the drive and transport equipment. In addition, a special swing-out module enables excellent access to the forming unit for maintenance tasks.

Key Features


Do you need individual advice?

We are gladly there for you.


Intelligent modularity

The compact construction and intelligent modularity of the ELO-BAR bar heating machines allow them to be integrated very efficiently into new or existing production lines. Among other things, the machines can be fully integrated into the control systems of modern presses and hot shears. They are equally versatile with regard to throughput. Machines with capacities from 200 kg/h to more than 25 t/h can be installed, depending on customer requirements and the forming unit.

High energy efficiency and productivity

ELO-BAR offers high energy efficiency and productivity with its heat retention function and zone technology, supported by a specially developed bar magazine with specific cooling functions for quick re-entry of circulating material. In addition, the shuttle system ensures short set-up times and high availability. By way of example, 20 inductors can be exchanged in less than 3 minutes. Another outstanding feature of ELO-BAR is the fully automatic height adjustment of the roller conveyor section at the infeed rolls of the downstream forming unit.

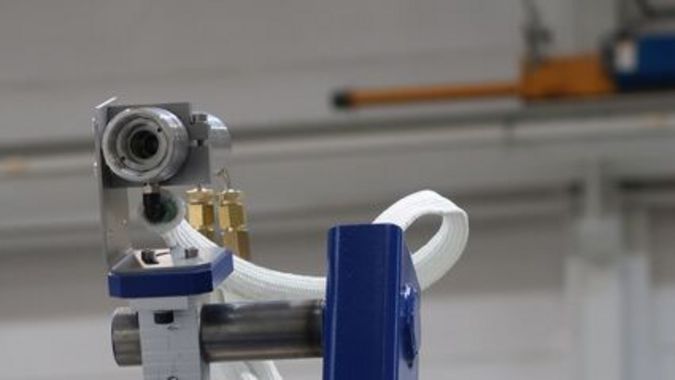

Pyrometer temperature measurement

The temperature after the inductor is measured by pyrometers. An immediate online comparison of target and actual values provides direct quality control. Any deviations lead to automatic power adjustment, ensuringhigh process reliability for the subsequent forging operation.

Best references worldwide

ELO-BAR rod heating machines are used worldwide and achieve excellent results. One of the highlights is the world’s largest rod heating machine. In combination with a hot shear, this machine can heat round bars with diameters up to 360 mm. The world’s fastest rod heating machine, located ahead of a horizontal press, was also built by SMS Elotherm.
